Embed CO Records in Email Table Cloud Content App Documentation

image_pdfimage_print

The Embed CO Records in Email Table Cloud Content App enables you to embed multiple rows of data from Eloqua Custom Objects (COs) into an email using HTML. In this document, we’ll explain the whole process in detail.

Advanced Formatting with HTML

The Content App allows Eloqua users to insert content into an email, and insert text or HTML before and after the CO records. A working knowledge of HTML coding is essential for creating well-formatted emails. Use our step-by-step guide to keep your work on the right track.

Installation and Configuration

Please follow these instructions to set up this cloud app in your Oracle Eloqua instance.

  • Log in to Oracle Eloqua.
  • Click on Get App below to install.

        NOTE: If prompted to log again, please do so.

  •  In the next screen, click “Sign In” and then “Accept”
Embed CO Records in Email Table Cloud Content App Documentation 1
  • On the next screen, click “Sign In” and then “Accept”.
Embed CO Records in Email Table Cloud Content App Documentation 2
  • You’re all set! The cloud action is ready for use.
Embed CO Records in Email Table Cloud Content App Documentation 3

Preparing your Custom Object for Use

  • Before using this cloud app, you must first add a new field to the CO that indicates the record was used. For example, you could add a “Status Text” field and insert the value “Completed” after processing. The app can also insert a date stamp.
Embed CO Records in Email Table Cloud Content App Documentation 4

Using the Cloud Content App

To configure the Cloud Content App in your email:

  • Drag a Cloud Content component onto your email as shown here.
Embed CO Records in Email Table Cloud Content App Documentation 5
  • Click on the “Browse” button for the cloud content component and then the “Browse” button under the Cloud Content option in the left menu. This will display a list of all Cloud Content elements in your Eloqua instance.
Embed CO Records in Email Table Cloud Content App Documentation 6

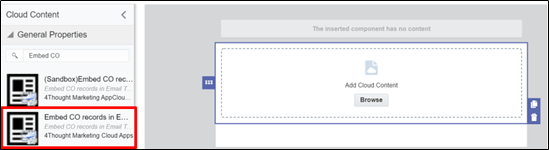

  • Search for “Embed CO Records in Email Table”. From the list, choose “Embed CO Records in Email table Cloud Content”.
Embed CO Records in Email Table Cloud Content App Documentation 7
  • When the 4Thought Marketing Cloud Content displays on the email, click on the “Configure” button in the left menu.
Embed CO Records in Email Table Cloud Content App Documentation 8
  • Click on the “Configure” button, and a popup will appear to configure the app. Choose the CO table that contains the data for your table.
Embed CO Records in Email Table Cloud Content App Documentation 9
  • Next, select the CDO field to flag after usage, and specify the value to insert. You may also insert a date by using {datestamp}.
  • And finally, specify an email address to receive a notification if there is an error. Click on “Save Settings”.
Embed CO Records in Email Table Cloud Content App Documentation 10

Creating Filters

  • The next step is to create a filter. A list of available fields and field identifiers, used to create the necessary filter, is displayed from the CO you selected. In the example below, we’ll show you how to include records where the Product ID is equal to 687. In the CDO filter field, enter ‘{2}’ =’687′. Please note that you will need to reference the field “number” in the filter definition.
Embed CO Records in Email Table Cloud Content App Documentation 11
  • All CO fields will have a number in the same series they have already added. For example, if the first field in your CO is the email address, the second field is email and product ID, the third field is product ID, the fourth field is product, the fifth field renewal date, the sixth field is status, then the field number will be auto-generated and visible on CDO fields Description area like {0}{1}{2}{3}{4}{5}.

Filter Operators

Not

Because Eloqua does not support using “!=” for “Does Not Equal”, use the not() operator in your filter. For example, if you wish to return records where Product ID is not equal to “687”, your filter would contain not(‘{2}’)=’687’

Today

The following are examples of some of the variables you can use to filter data. Note that the value “39” corresponds to your ‘Renew – ExpirationDate’ filtering field.
Syntax: today({fieldId}[,+-,Number(Days/Weeks/Months])

Examples

  • today({39},+,5d) => Records where the date field {39} value is 5 days after today
  • today({39},-,5w) => Records where the date field {39} value is 5 weeks before today
  • not(today({39},+,5m)) => Records where the date field {39} value is Not 5 months after today

Range

Syntax: range( {fieldId}[,+-,Number(Days/Weeks/Months])

  • range({39},+,5d) => Records where the date field {39} value is within the next 5 days (including today)
  • range({39},-,5w) => Records where the date field {39} value is within the last 5 weeks (including today)
  • not(range({39},-,5m)) => Records where the date field {39} value is NOT within the last 5 months (including today)

Configuring Tables and Field Merges

  • The last step in the configuration is to add the HTML code that will build the table of records. There is a box for the code to write before the records are added; the code for the table itself; and the code to write after the table
Embed CO Records in Email Table Cloud Content App Documentation 12

Your email Cloud Content App configuration is complete! Complete the remainder of your email, and give it a test run.

  • Make sure you click “Save Settings” to save your configuration. If you make any changes, you can click “Revert Changes” to go back to the last saved configuration
Embed CO Records in Email Table Cloud Content App Documentation 13

Logs


This section shows the execution logs for the cloud app

Embed CO Records in Email Table Cloud Content App Documentation 14

a. Show: Here, you can select what type of log you want to see. You have an option to select “All logs”, “Successful logs only”, “Failed logs only”.
b. Within the following timeframe: This field allows you to select the timeframe to view the execution logs.
Note: You can view up to 2 months of logs.

Embed CO Records in Email Table Cloud Content App Documentation 15

Note: Most 4Thought Marketing apps use the Eloqua BULK API to export/import records. Therefore, when an app is used in a campaign or program, the user that activates the campaign will need the following permissions:


• API
o Consume API
• Contacts
o Upload contacts/prospects/companies
o Manage data export
o Manage contacts

Additionally, if you notice that the app is not processing CO records, it may be due to a missing or expired license. Get in touch with your account manager for a new one.
